Home Precision Filter For Infusion IV-Baby

IV-Baby

IV-Baby adopts special design with small size and low residue, suitable for low residue infusion conditions such as anesthesia infusion, infusion for newborns or infants etc.


Applicable：

  • Anesthesia infusion pump
  • Parenteral nutrition solution (TPN) and lipid drug infusion
  • Infusions for newborns or infants
  • Anticancer drug (paclitaxel, lansoprazole) infusion
  • Precision filter extension tube
Product features
  • Small size, low residue.
  • Suitable for gravity or infusion pump infusion.
  • Anti-bacterial grade super hydrophobic exhaust membrane, to ensure that the infusion of anti-cancer drugs, lipids, alcohols and other low surface tension drugs without the risk of leakage.
  • A variety of filter hole sizes including 0.2μm, 1.2μm, 2.0μm, 3.0μm, and 5.0μm for your selection, all of which have passed the relevant bacterial challenge and filtration rate tests, and are suitable for various infusion situations.
  • Customizable Logo to strengthen brand image.
  • Light-proof shell is optional.(Color can be customized)
  • Multiple product connectors, suitable for a variety of connection pipes.
Product parameterOrdering information

Product parameter

  • Biological safety

    The material complies with USP Class Vl, ISO10993 and GBT16886.1

    Maximum working pressure

    3.5bar

  • Size

    Length: 38.4mm(21.6mm without connector)
    Width: 15mm
    Thickness: 4.1mm
    Weight: 1.2g

    Bubble point

    0.2μm: ≥ 3.5 bar
    1.2μm: ≥0.8 bar
    5.0μm: ≥0.25 bar

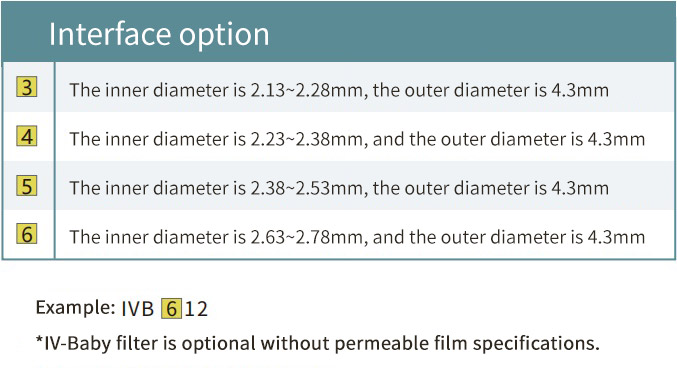

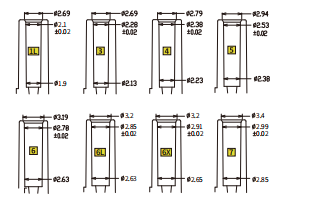

  • Size of inlet and outlet

    Inlet: i/d 2.3mm/2.4mm/2.7mm/2.8mm, o/d 4.3mm
    Outlet: i/d 2.3mm/2.4mm/2.7mm/2.8mm, o/d 4.3mm

    Flow rate

    0.2μm: ≥4 mL/min at 0.1bar (1m static pressure)
    1.2μm: ≥30 mL/min at 0.1bar(1m static pressure)
    5.0μm: ≥55 mL/min at 0.1bar(1m static pressure)

  • Effective filtration area

    PES medicine liquid filtration membrane:1.50c㎡
    PTFE waterproof breathable membrane:0.25c㎡

    Submembrane volume

    0.18 mL

  • Material

    Medicine liquid filtration membrane: High flow rate hydrophilic PES membrane
    Waterproof breathable membrane: Anti-bacterial grade super hydrophobic PTFE membrane 0.2μm
    outer shell: Transparent medical grade ABS

    Endotoxin

    <0.25 EU/mL

  • Sterilization method

    EO, Irradiation sterilization (≤25 kGy)

Ordering information

Product model filter hole size product description
IVB 02 0.2μm Double breathable membrane, transparent outer shell
IVB 02A 0.2μm Double breathable membrane, Light-proof outer shell
IVB 12 1.2μm Double breathable membrane, transparent outer shell
IVB 12A 1.2μm Double breathable membrane, Light-proof outer shell
IVB 50 5.0μm Double breathable membrane, transparent outer shell
IVB 50A 5.0μm Double breathable membrane, Light-proof outer shell
